Touch Control Stainless Steel Kitchen Faucet Brushed Nickel

Touch Control Stainless Steel Kitchen Faucet Brushed Nickel

Installation Type: Deck Mounted touch kitchen faucet
Valve Type: Ceramic Plate Spool

Faucet Function: Touch Kitchen faucet, Pull out kitchen tap
Material: SUS304 Stainless Steel touch kitchen faucet

System Features:
1. Touch switch: When you tap the faucet, water will flow. a tap will turn it off.
2. Safety protect: When the water keeps flowing exceeding the setting time (time refer to function option), the faucet will automatically shut off.
3. Integral touch: Operation is simple, with the handle in the "on" position , you can tap anywhere on the spout and base.
4. Split type: The controller box is separated from the faucet, so it is easily installed and maintained.
5. Low power consumption: Battery operate, your faucet will run for up to 1 year on 4 AA batteries.
6. Product Configuration:The system consists of controller box and water-proof battery box.

Installation Requirements:
1. The battery box shall be placed close the ground (it will be better if the box is placed on the ground), and the battery wires shall be spread.
2. The faucet shall be electrically insulated from table and other pipeline, shall be assembled plastic spacer gasket when installed on the metallic table.
3. Inlet hose and pull hose should be insulated.

Installation instructions:

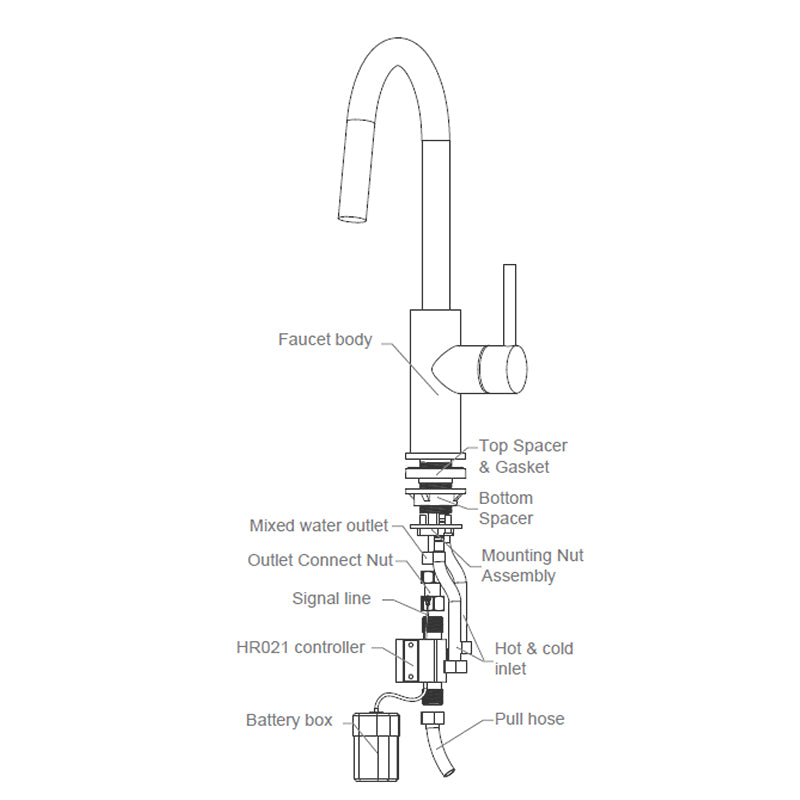

STEP 1: Install and fix the faucet. (see installation diagram )
STEP 2: Connect the controller box to the mixed water outlet and connect the inlet and pull hose.
STEP 3: Turn on the triangle valve and connect waterway.
STEP 4: Connect the battery box.
STEP 5: It can work properly.

Operation Notice:
"Tap" means that your fingers (palm or other parts) immediately move away after touching the faucet. The time from the fingers touching to moving away shall be no more than 300ms, or the tap will be invalid. The water will flow out after one tap and turn off after one tap again.
